Ramsond 12000 BTU PTAC AC HEAT PUMP WITH BACKUP HEAT STRIP

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
AC World
Your Price:
$959.99
(You save $340.00)
SKU:
KCD-32C/Ba
Brand:
Rating:
Review Stars
( )
Shipping:
$169.99 (Fixed shipping cost)
Quantity:


Product Description

Ramsond KCD-32C/Ba

PTAC
Cool & Heat

12000 BTU COOL
AC/Heat Pump +Backup Heat Strip

Coverage Area: Approx. 550 Sq. Ft.

Complete Package

with $230 in Accessories (Sleeve, Grill, Remote,  LCDI Plug)

INTRODUCTION

Packaged Terminal Air Conditioners (Commonly known as PTAC) are ideal for application in hotels, motels and apartments, where the environment of a single zone, with an outside wall needs to be controlled. As the name implies, a single package contains all the components of an air-cooled (and often heated) refrigeration and air-handling system. The entire package is self contained. PTAC’s are designed for through-the-wall installation, with decorative outdoor grilles. PTAC units are also available with various heating options (Electrical or Heat-Pump). Since the heat-pump ambient temperature (15 degrees Fahrenheit) may provide certain limitations in many climates, the most popular models are equipped with Heat Pump and electric heat backup.

Ramsond PTAC systems are easy and quick to install. They operate quietly. They are versatile and efficient and can be installed in variety of zones. They are integrated with the most reliable components available in the market. As such, they are backed by one of the best warranties in market. They are far more advanced than conventional air conditioning systems. Ramsond PTAC systems are not only sleek and stylish, but are super efficient and economical. For these and other reasons, Ramsond PTAC units have become the preferred choice of many HVAC professionals worldwide.

FEATURES

Ramsond KCD-32C/Ba Digital Control Panel

Digital Control Panel

The microprocessor multifunction digital control panel, standard on all Ramsond PTAC systems, combines reliable functionality that is perfectly matched with the stylish design of the unit.

Uncompromising Quality and Premium Components

Quality is never compromised. Only the best quality and first-rate components, such as Panasonic compressors, are used in Ramsond products.



Toshiba Components

Quiet Operation

Quiet Operation

Ramsond PTAC units have been designed to run quietly as compared with conventional systems

Saw Tooth Fan Wheel Design for Noise Reduction

The latest design adopts the air flow blades in the shape of saw teeth, which greatly reduces the vibration noises at the end of the vortex, ensuring a quiet operation of the unit.

Noise Reducing Fan
Multi-Fold Evaporator

Multi-Fold Evaporator

Enlarges the heat dissipation surface area; enhancing the efficiency and making the unit more compact in size.

Superior Inner-Grooved Copper Tubing

Enables a much faster refrigerant flow, increasing the heat exchange efficiency by 30-50% over the traditional smooth copper tubing.

Inner-Grooved Copper Tubing

Hydrophilic Film

Hydrophilic Film Aluminum Foil

Blue colored hydrophilic aluminum foil in indoor unit stays free of water contamination, enhancing heat exchange efficiency.

Integrated Dual Particle Filter (Washable)

Gray colored anti-mold dust/particle filters in the front panel cover provide for fresher air circulation. They are removable and washable.

Dual Particle Filter

Ramsond KCD-32C/Ba Tri-Control System

TRI-CONTROL SYSTEM

(Control Panel, Remote )

The PTAC unit's front digital control panel, the wireless remote and the multifunction thermostat can be used to control the operation of each PTAC system. (Not Included)


Independent DehumidificationINDEPENDENT DEHUMIDIFICATION Quiet OperationQUIET OPERATION TimerTIMER (ON/OFF)
Heating HEATING ( Heat Pump) Auto DiagnosisAUTO DIAGNOSIS Washable Particle FilterWASHABLE PARTICLE FILTER



INSTALLATION & CONNECTION

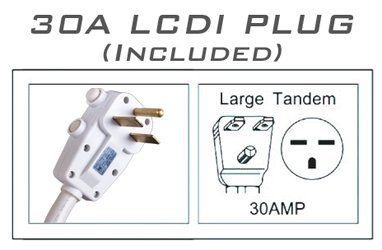

Ramsond PTAC units are sized according the most commonly used industry standard (42" Width, 16" Height). They are also equipped with 30 Amp LCDI plug. Click here to see the complete installation guide.

Ramsond KCD-32C/Ba Wall Sleeve DimensionsRamsond KCD-32C/Ba Minimum Wall Sleeve Opening



SPECIFICATIONS


Model No.

KCD-32C/Ba

Cooling Capacity

Btu/Hr

12000

Compressor

PANASONIC

Refrigerant

R410A

Power Supply

Single Phase 220V/60Hz

Heating Capacity

Btu/Hr

NA

Electric Heating

W

1000

Dehumidification

Litres/H

1.3

EER

Btu/W

10.4

COP

Btu/W



Noise Level

Dba

~40

Air Flow

CFM

400/360/325

Power Input

Watt

1130

Rated Current

AMP

5

Full Load Current

AMP

22.8

Breaker Min

AMP

20

Net Weight

LBS

134

Gross Weight

LBS

160

Dimensions (WxHxD)

Inch

42x16x13 ¾

Certificate

ETL

Mfg. Warranty

3 Year Parts
7Years Compressor

CETLUS Certification

DIRECT PURCHASE

You can purchase your Ramsond Air Conditioning System here. When you purchase your Ramsond air conditioning system here, you can rest assured that you will receive a BRAND NEW (Not refurbished or reconditioned) System. We do NOT sell used, refurbished or reconditioned systems. Your order will be immediately processed and shipped from one of our warehousing facilities in the US (or Canada for our Canadian customers). Most orders are shipped within 1 business day. You will also have the peace of mind of knowing that capable technicians and support group will be available to provide after-sale support.

INCLUDED IN THIS PACKAGE

Each Ramsond KCD-32C/Ba PTAC System will be shipped as a complete package. It will include:

• Ramsond PTAC Unit Insert

• Wall Sleeve (off white color)

• Rear Outdoor Grill

• Wireless Multifunction Digital Remote Control

• Multifunction Digital Thermostat (Wiring Connection Not Included)

• 20 Amp LCDI Plug

Operation Manual

Installation Manual

3 Year Parts/7 Years Compressor Manufacturer Warranty

Ramsond KCD-32C/Ba

Manuals

Other Details

BTU Size:
12000 BTU (1 Ton)
Heater Type:
Equipped with Heat Pump + Electric Heater
Compressor Type:
Panasonic Compressor
Control & Display Type:
Digital Microprocessor Control and Display
Remote:
Includes Wireless Digital Remote
Installation Size:
Standard 42" x 16" Installation
Included Accessories:
Includes Wall Sleeve, Grill, LCDI Plug
Shipping:
Shipping in US & Canada
